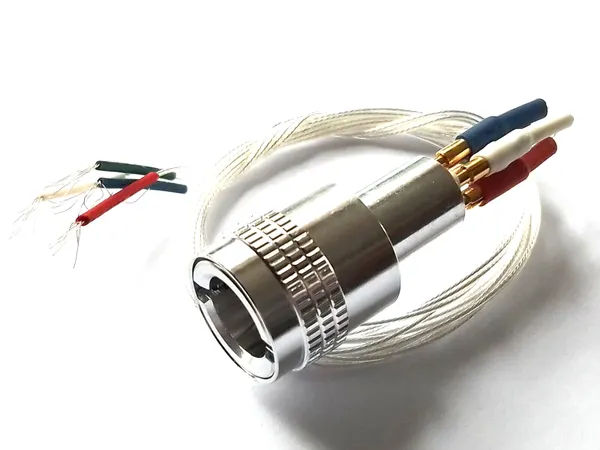

400mm Litz 5N Wired Tonearm Connector Socket for Pioneer PL-10 Turntable

This 400mm Litz 5N Wired Tonearm Connector Socket is designed for use with S-shaped tonearms (not thin straight arms).

It is suitable for almost all tonearm tubes with an inside diameter of 8mm.

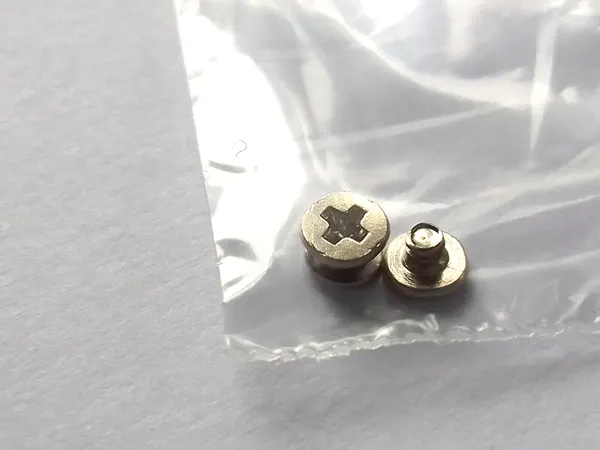

The two screw hole dimensions match those of the Audio-Technica AT-PL120's tonearm, a common sizing; you may find your tonearm requires only one fixing screw.

Crafted from a single block of aircraft-grade aluminum using a CNC high-precision lathe, this connector is very light in weight and comes pre-wired with Litz 30AWG 5N Pure Silver Tonearm Wire.

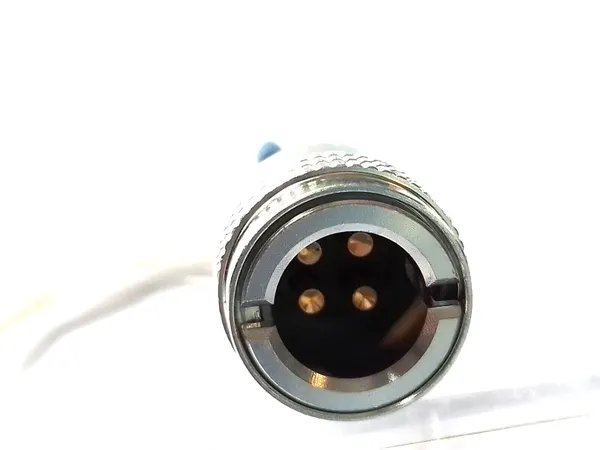

It is compatible with all standard H-4 Bayonet Mount Headshells, including:

• Technics
• Sony
• Denon
• Pioneer
• Sansui
• Sherwood
• Audio-Technica
• National Panasonic
• Telefunken
• Reloop
• Schneider
• Onkyo
• Gemini
• Stanton
• Teac
• ION
• Numark
• Hitachi
• Toshiba
• Sansui
• And many others.

The tiny internal springs are made of 24K gold-plated brass.

Litz Wiring Details:

• 30AWG 5N Pure Silver Litz Wiring
• Best wire for faster transmission speeds and cleaner sound
• 0.55mm outer diameter
• Litz construction with 7 strands, each 0.1mm in diameter
• 99.999% pure soft annealed silver wires
• Oversized PTFE Teflon insulation
• Woven Teflon Litz construction for faster electrical signal transmission and less distortion than ordinary OFC wires
• High-grade Teflon insulation is the best insulator for bare cable

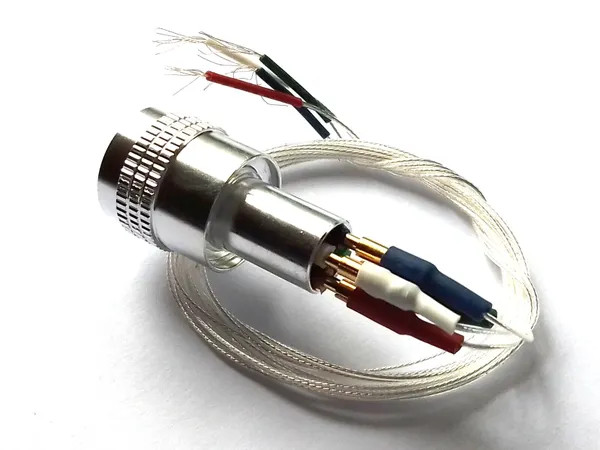

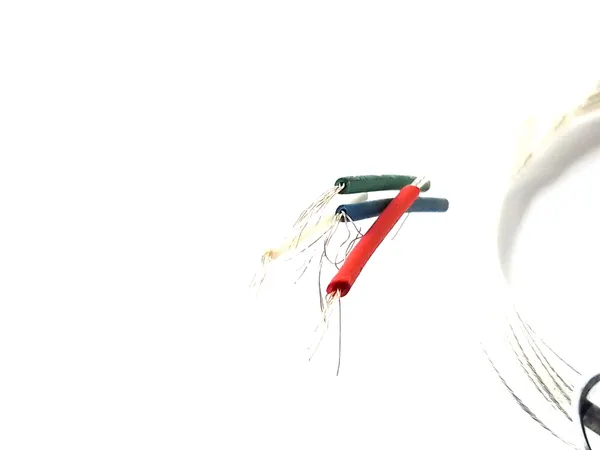

The wires are 400mm long with bare wire connections for soldering onto your own tonearm output cable. Each terminal end is wrapped in color-coded shrink tubing.

Sound reproduction from this connector is superb, offering a significant sound improvement over most original tonearm connections.
